Energy-Efficient Dryers and Air Blowers
Pumps, Air Blowers, And Automation Equipment
TYPES & MODELS
MAIN CATEGORIES
Air Blowers and Drying Systems
Paxton Centrifugal Blowers
Paxton Centrifugal Blowers offer highly efficient solutions for drying, blow off, air rinsing, process air and vacuum applications, replacing compressed air blow off, as well as other, less efficient blowers such as squirrel cage or regenerative blowers. When coupled with a properly designed air delivery device, centrifugal air blowers provide superior blow off, drying or air rinsing, to improve product quality, while reducing energy usage by 50 – 80%. Because of these energy savings, the return on investment (ROI) for a Paxton centrifugal blower is often times about one year. Available in sizes from 3 hp up to 20 hp, Paxton offers three series of belt-driven centrifugal blowers.
- Highly efficient blowers with state of the art impeller design and improved belt design with less friction
- Longer service life, with the centrifugal blower design using minimum belt tension for all pulley ratios
- Low maintenance due to long lasting belts, unique belt tensioning systems, and patented filter design
- Quiet operation: advanced engineering and precision manufacturing reduce the vibration & noise of our centrifugal blowers
- Best in class 3 year warranty for all Paxton Blowers
Paxton Products custom-engineers Air Systems for all types of applications, first designing the air delivery device needed based on product size and shape, line speeds and configurations, and other factors. Next, the centrifugal blower is sized based on the air volume and pressure needed for the application, resulting in maximum efficiency and performance. In fact, Paxton offers a full performance guarantee for many applications.
PX Series Centrifugal Blowers
The new PX-series blowers offer unmatched efficiency. Compared to other
high efficiency centrifugal blowers, including Paxton’s own AT-series,
the PX-series is 33% more efficient, with blower efficiencies as high as
76%. That means you’ll use 33% less energy!
Paxton has completely redesigned the blower impeller and scroll,
improving aerodynamics to generate 33% more airflow per horsepower input.
More Power
The PX-2000 generates as much as 1500 cfm of air flow, with its 20 hp
motor. Compare this with only 1125 cfm of air flow with typical 20
hp blowers.
Less Energy
The PX-1500 uses a 15 hp motor but generates as much air flow as standard
20 hp blower. That means you’ll save over $2000 in electrical costs
annually – that’s 25% of the operating cost.
More Efficient
- The PX-series generates less heat, turning more energy into air power.
- Less Heat = More Air Power
- Less Heat = Longer Blower Life
- Lower Energy Use per CFM of air generated
Highly Reliable
- High load capacity bearing at rated speeds for long bearing life. ABEC7
Super Precision Angular Contact bearings made in the USA
- Stringent balancing, quality control and testing prior to leaving
the factory
- Unmatched 3 year warranty
AT Series Centrifugal Blowers
The AT-series blowers offer highly efficient solutions for process air,
drying, or vacuum applications. With availability of power ratings ranging
from 7.5 hp to 20 hp, there is an AT-series blower for any industrial application.
Highly efficient for lower energy costs
- State of the art impeller design produces more airflow at lower
blower speeds
- Improved belt design to give less friction
- Patented filter + silencer design reduces pressure drop and vibration
Low maintenance blowers
- Automatic belt tensioner
- Aramid belt lasts 2x longer than polyester belts
- Patented filter media gives improved performance and longer life
Low OSHA compliant noise levels
- Equipped with a silencer cartridge to reduce noise by 3 dBA
- Sound levels can be further reduced with a blower enclosure
Highly reliable
- High load capacity bearing at rated speeds for long bearing life. ABEC7
Super Precision Angular Contact bearings made in the USA
- Stringent balancing, quality control and testing prior to leaving
the factory
- Unmatched 3 year warranty

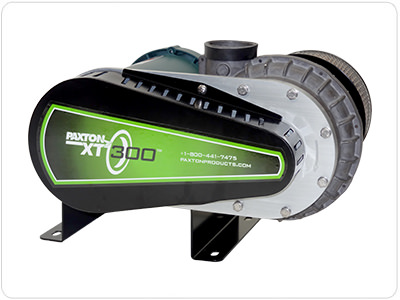

XT Series Centrifugal Blowers
The XT-series blowers are Paxton’s highest efficiency blowers for drying
and process air applications of all types. Return on investment is often
times about one year. The XT-series is available in 3 hp and 5 hp models.
The XT-300 is Paxton’s smallest blower and is the foundation of the PowerDry™
System. The XT-series features an auto-tension belt drive designed specifically
to enhance the performance, efficiency and service life of the XT-series’
smaller motors. And the energy requirements for the XT-series is substantially
less than that of a typical centrifugal blower: an XT-500, for example,
delivers 20% more flow at the same pressure when compared to a standard
5 hp centrifugal blower.
Highest efficiency for lowest energy costs
- Auto-tensioning belt with low bearing loads and reduced friction
- State of the art impeller design produces more airflow at lower
blower speeds
- Patented filter design reduces pressure drop and vibration
Low maintenance
- Auto-tension belt drive
- No tensioner to replace
- Auto-tensioning belt lasts 3x longer than standard polyester
belts
- Patented filter media gives improved performance and longer life
Lower noise levels
- Equipped with a silencer cartridge to reduce noise by 3 dBA
- Sound levels can be further reduced with a blower enclosure
Highly reliable
- High load capacity bearing at rated speeds for long bearing life. ABEC7
Super Precision Angular Contact bearings made in the USA.
- Stringent balancing, quality control and testing prior to leaving
the factory
- Unmatched 3 year warranty
