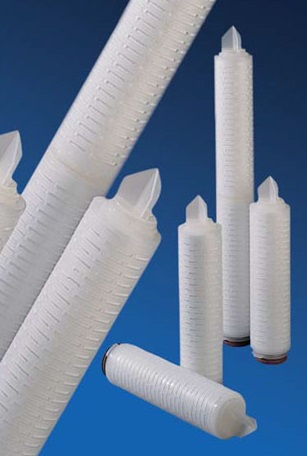

Ultipleat High-Flow Filter

The filter is specially designed for high flow applications (>10 m/h). Compared with conventional cartridges, fewer elements are required for a given flow rate, avoiding the use of large housings and enabling major savings in capital, maintenance and operating costs.

Reproducible and consistent absolute rating (ß>5000). Size remove: from 1 micron to 20 micron

Particle Depth Filter Cartridge

These filter cartridges are high efficiency depth style filters constructed of polypropylene. Constructed of polypropylene, with a continuously graded fixed pore structure, these cartridges provide pre- and final filtration within the same cartridge resulting in lower overall filtration and disposal cost.

The filter cartridges provide a removal efficiency of >99.98% in compatible liquids with consistent filtration performance.

Size remove: from 0.5 micron to 100 micron

Particle-pleated Filter Cartridge

The filter cartridges are all-polypropylene pleated filters with high flow and high contaminant holding capacity for longer on-stream life. The filter media is produced by using a proprietary melt-blowing process that delivers exceptional product consistency. It is ideally suited to the capture of non-deformable particles from compatible liquid or inert gas feed streams, characterized by a narrow particle size. Size remove : from 0.2 micron to 50 micron

Sterilizing Grade Filter

This filter cartridges feature a unique hydrophilic modified polyvinylidenedifluoride ( PVDF) membrane or Nylon 6,6. They are recommended for pharmaceuticals including ophthalmics and other dilute preservative solutions, biologicals including dilute protein solutions, cold and hot WFI, chemicals, aggressive solvents and sanitizing agentsMicrobial Removal rating:

• 0.45 micron with Serratia marcescens Tr>10^6
• 0.2 micron with sterilizing grade Tr>10^7 cfu/cm2 Brevudimonas diminuta
• 0.1 micron with mycoplasma rated sterilizing grade with Acholeplasma laidlawii Tr>10^8

High-Flow Sterilizing Grade Filter

This filter with a unique combination of Ultipleat filter construction and optimized built in prefiltration to give longer filter life and lower filtration costs. The filters are suitable for sterile filtration of a wide range of fluids including buffers, biological fluids, tissue culture media, ophthalmic products and many others. The low protein and preservative binding fo the supor polyethersulfone membrane also ensures maximum transmission of active ingredients.

Microbial Removal rating:

• 0.45 micron with Serratia marcescens Tr>10^6
• 0.2 micron with sterilizing grade Tr>10^7 cfu/cm2 Brevudimonas diminuta
• 0.1 micron with mycoplasma rated sterilizing grade with Acholeplasma laidlawii Tr>10^8

Water System

Critical to the absolute purity of your finished product is filtration at every stage, including prefiltration of raw water as it enters the process. Pall has addressed your need for an economical and reliable particulate filter systems designed for the following applications.

Conventional water treatment upstream of nanofiltration and reverse-osmosis systems can include sand filtration, flocculations, ion exchange resins and cartridge filtration. For a more economical and reliable approach, Pall has developed a compact system that uses Hollow Fiber modules for the replacement of most conventional water treatment steps upstream of reverse osmosis or nanofiltration.

Filter Integrity Test Instrument

The Palltronic® Flowstar IV filter integrity test instrument is the result of Pall's long experience and expert technical knowledge in producing successful, top-quality test instruments. The Flowstar IV instrument introduces many new features, enabling users to reliably and reproducibly test even more filters and in less time, saving time and money. Lightweight, compact and ergonomic, the instrument now features an enhanced touch screen and user-friendly interface, requiring minimal training of operators.

Improved pressure/flow calibration preserves measurement accuracy while ensuring faster tests. The latest networking capabilities are incorporated for easy integration within a network, and the optional WLAN adaptor, USB connectivity plus an extended range of remote control/automation options enable even greater flexibility. Developed in accordance with GAMP (Good Automated Manufacturing Practices) guidelines, and offering full compliance with 21 CFR Part 11, the Palltronic Flowstar IV instrument is supported by an extensive qualification documentation package, including guides for Installation and Operational Qualification (IQ/OQ).

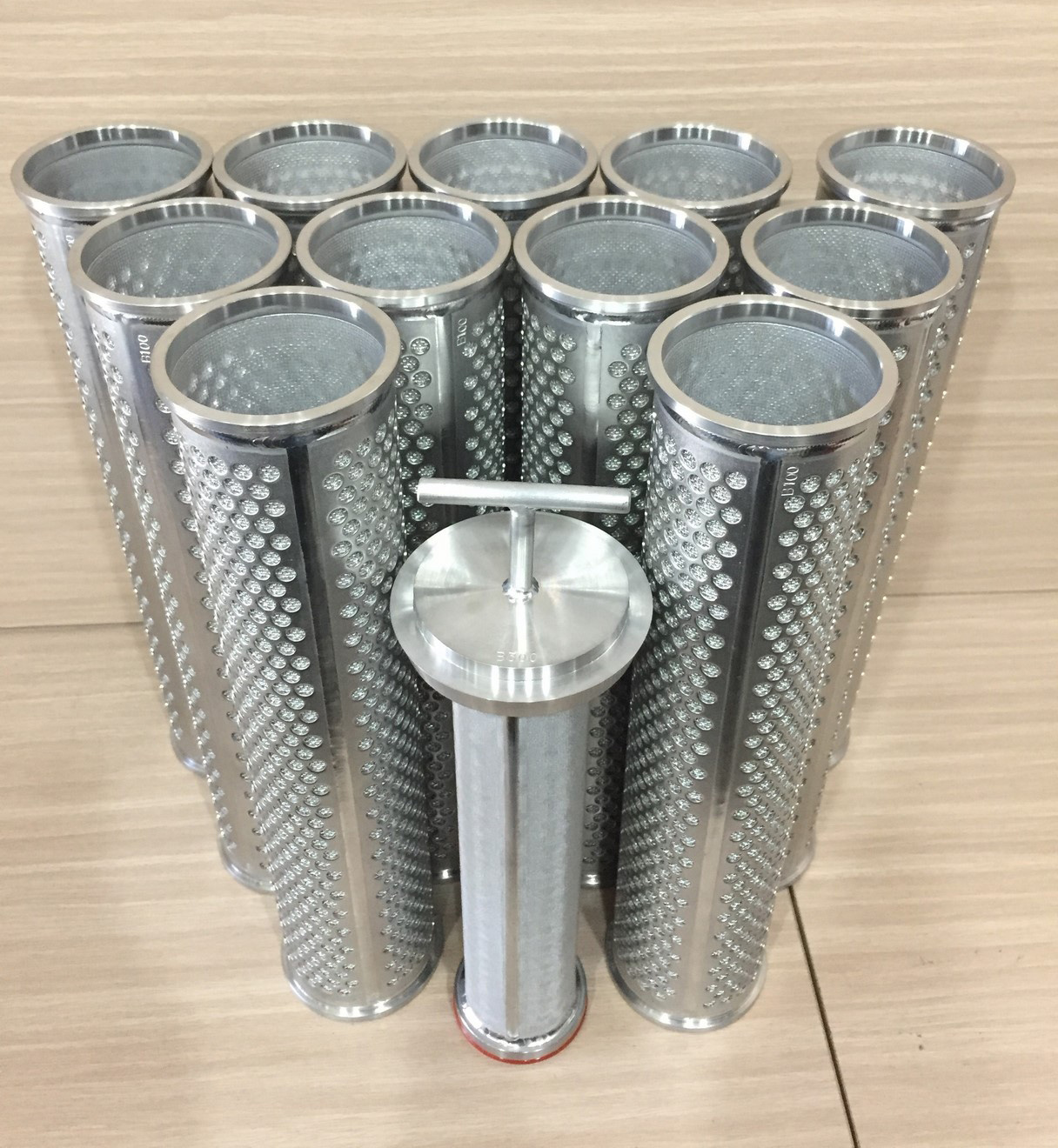

Steel Filter

Dynalloy® porous metal fiber medium is specifically designed to optimize particulate capture via its asymmetrical graded pore structure. This structure exhibits the finest pores on the upstream side of the filter media, insuring the capture of particulates at the filters’ first surface, where they are easily removed by in-situ, reverse flow operations.

Manufacturing is done completely in-house, including the production of the metal fibers, the formulation of the proprietary base medium, and the design of the element. The process concludes with Pall's scientifically controlled sintering process.

The sintering process fuses the structure of the filter media, insuring a “weld-bond” which utilizes no “binders” that might otherwise shed and contaminate downstream equipment and/or final product quality.

Filter Inline

The demands arising from the rapid development of emerging industries have necessitated filters with requirements for outstanding performance characteristics over conventional ones in every respect. Our high-precision filter elements and filter systems match today's industrial requirements for high filtration efficiency, low pressure drop, and long service life.

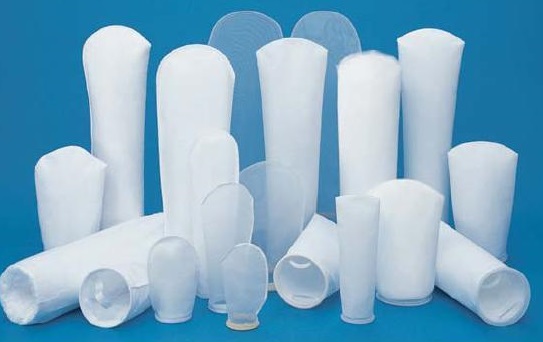

Bag Filter

The BOS filter bag is a Polymicro®seamless filter bag, constructed entirely without seams. This unique material composition allows for a higher efficiency, with graded pore-size distribution creating absolute filtration.

• Seamless construction offers unequalled benefit of eliminating fluid bypass
• Absolute rated (98%) 3-100 microns for highest efficiency and consistent quality
• Microfiber-graded pore design provides lower initial pressure drop
• Thermally-bonded microfibers contain no sizing, bonding adhesive, resin or silicone
• Can be incinerated for easy disposal
• Available with NSF Standard 61 Certification

Mesh Filter Bags

Pall FSI Mesh Filter Bags are constructed using a woven or knitted fabric. Available in single filament mesh that provides excellent strength with no fiber migration, or a woven multi-strand mesh for low-cost, disposable bags.

• Available in nylon monofilament, polyester multifilament and polypropylene monofilament offering broad range of chemical compatibility and price ranges
• Monofilament mesh bags provide extra strength and abrasion resistance
• Precision mesh materials produce predictable results for consistent performance
• Offered in standard and custom sizes to provide a perfect fit for standard and unique applications
• Offered in micron ratings 1-1500 with plastic and metal rings for versatility
• Silicone free to prevent cratering for a better surface finish
